ScopeSim Overview#

ScopeSim is a Python-based astronomical instrument simulator. It models the full optical path — from sky source through atmosphere, telescope, instrument optics, and detector — to produce simulated detector readouts (FITS images/spectra). Instrument configurations live in the Instrument Reference Database (IRDB), separate from the ScopeSim engine itself. This notebook demonstrates the basic workflow of ScopeSim, using the ZShooter instrument as an example.

Core steps in a ScopeSim simulation#

The flow of a ScopeSim simulation can be summarized as follows:

UserCommands  ──►  OpticalTrain  ──►  observe(source)  ──►  readout()  ──►  FITS HDUs

UserCommands loads the instrument configuration from the IRDB, OpticalTrain builds the optical path and initializes all effects, observe() applies the effects to a source object, and readout() produces the final detector readouts.

Instrument Configuration:#

The instrument definition (package) is a directory in the IRDB, e.g. ZShooter_v2/ which contains a bunch of YAML files. It is loaded via:

cmd = sim.UserCommands(use_instrument="ZShooter_v2", set_modes=["SPEC"])

cmd stores a nested dictionary-like structure containing all the properties keys/values from the loaded yamls, and the list of effects to be instantiated.

default.yaml — Entry Point#

The default config is the root document for an instrument. It declares:

  • Which packages (subdirectories) to pull in (packages:)

  • Which yaml files to load, in order (yamls:)

  • Top-level observation properties under an alias (e.g. OBS, SIM)

  • Mode yamls — additional yaml files that activate when a mode (e.g. SPEC) is selected

object: configuration
alias: OBS
name: ZShooter_default_configuration

packages:
  - MaunaKea        # site / atmosphere package
  - Keck            # telescope package
  - ZShooter_v2     # instrument package

yamls:
  - MaunaKea.yaml   # loads site config  → alias ATMO
  - Keck.yaml       # loads telescope config → alias TEL
  - ZShooter.yaml   # loads instrument common effects → alias INST

properties:
  airmass: 1.0
  pupil_angle: 0
  dit: 10
  ndit: 1

mode_yamls:
  - object: instrument
    name: SPEC
    yamls:
      - ZShooter_SPEC.yaml   # spectral-mode optics (traces, slits, dichroics)
      - ZShooter_DET.yaml    # detector definitions

MaunaKea.yaml — Observatory site package#

object: atmosphere
alias: ATMO
name: MaunaKea

properties:
  altitude: 4123       # m
  longitude: -155.4744
  latitude: 19.8263
  temperature: 2.5     # deg C
  humidity: 0.1
  pressure: 0.620      # bar
  seeing: 0.7          # arcsec

effects:
  - name: atmo_transmission
    class: TERCurve         # Transmission/Emission/Reflection curve

!ATMO.xxx references can be used in other yaml files to get values specified in this config.

Keck.yaml — Telescope Package#

object: telescope
alias: TEL
name: keck

properties:
  telescope: keck
  temperature: "!ATMO.temperature"   # live reference to ATMO alias

effects:
  - name: telescope_reflection
    class: SurfaceList    # combined mirror TER curves

ZShooter.yaml + mode yamls — instrument optics#

Common optics shared across modes can be in a top-level ZShooter.yaml, e.g.:

object: instrument
alias: INST
properties:
  pixel_scale: 0.1596   # arcsec/pixel
effects:
  - name: Selector
    class: SurfaceList

Spectral mode yaml (ZShooter_SPEC.yaml) adds optical effects in the spectroscopic path, like:

  • DichroicTree — beam-splitting tree (bgr / yjhk arms)

  • EchelleSpectralTraceList — spectral order trace geometry

  • EchelleSpectralEfficiency — per-order throughput

Detector effects can be defined in a separate yaml file for clarity (ZShooter_DET.yaml):

  • 6× DetectorList objects (B, G, R, YJ, H, K arms), each on its own image_plane_id

  • ExposureIntegration, ShotNoise, DarkCurrent, BasicReadoutNoise, Bias effects

Effects#

An Effect is the fundamental building block in ScopeSim. It represents any physical or instrumental process that modifies the signal as it propagates through the system.

Anatomy of an Effect#

Every effect is listed in a yaml as follows:

- name: <human_readable_label>
  description: <what it does>
  class: <ScopeSim Effect class>   # e.g. TERCurve, MoffatPSF, DetectorList
  include: True                    # can be toggled on/off at runtime
  kwargs:
    filename: "some_data_file.dat"
    key: value
    key: "!ALIAS.property"         # live reference into the rc config system

These yaml entries are parsed and used to instantiate the corresponding Effect subclass. The kwargs are passed to the effect’s __init__() method, and any live references (!ALIAS.property) are resolved at runtime from cmd nested-dictionary. During the “observe” step, Effect.apply_to(obj) modifies the object flowing through the pipeline.

Live References (!ALIAS.property)#

Properties prefixed with ! are resolved at runtime from cmd nested-dictionary object, e.g.:

  • "!OBS.airmass" → current airmass from the OBS yaml

  • "!ATMO.temperature" → site temperature from the ATMO yaml

  • "!SIM.spectral.wave_min" → simulation wavelength minimum from the SIM yaml block

z_order: Effect Execution Ordering#

Every ScopeSim Effect subclass declares a z_order class variable — a tuple of integers encoding when the effect is applied in the pipeline. The OpticsManager collects all effects from all loaded yaml files and routes them to the correct pipeline stage by their z_order range.

z_order range

Stage

Applied to
``200

– 299``

FoV setup effects

Set up FoVs (spatio-spectral footprints) and FovVolumeList, e.g. ApertureList, SpectralTraceList
``300

– 399``

Image plane setup effects

Set up image plane geometry
``400

– 499``

Detector setup

DetectorList — create Detector objects
``500

– 599``

Source/TER effects

Alter Source object (e.g. 1D transmission)
``600

– 699``

FOV effects (3D)

Per-FoV effects that modify FoV HDU data (PSF, dichroics, shifts)
``700

– 799``

Image plane effects (2D)

image plane effects (vibration, etc.)
``800

– 899``

Detector effects

Noise, dark current, readout per detector
``900

– 999``

Detector array effects

Cross-detector / array-level effects

1000 – 1099

FITS header effects

Write metadata into output HDU headers

Important: Within a z_order band, the execution order is determined by the sequence the effects appear in the yaml files, not the exact numeric value of z_order.

An effect can belong to multiple stages by declaring multiple values, e.g.:

class SurfaceList(Effect):
    z_order: ClassVar[tuple[int, ...]] = (20, 120, 520)
    # Active as a FOV-setup effect (20), image-plane-setup (120), and source effect (520)

Setup ScopeSim simulator#

1. UserCommands(use_instrument=..., set_modes=[...])
        └─ parse default.yaml + mode yamls, build rc config

[1]:

## imports
import matplotlib.pyplot as plt
from astropy import units as u
import scopesim as sim
from zs_scopesim_tools.helpers import configure_irdb_path, set_scopesim_log_level
configure_irdb_path()
set_scopesim_log_level("warning")

## user commands
cmd = sim.UserCommands(use_instrument="ZShooter_v2", set_modes=["SPEC"])

The returned cmd object is a nested dictionary-like structure containing all the properties keys/values from the loaded yamls, accessible via their alias, e.g. cmd['!OBS.airmass'], cmd['!ATMO.temperature'], etc.

These values are live references, meaning that if you change cmd['!OBS.airmass'] = 2.0 at any point, any effect that references !OBS.airmass will see the updated value the next time optical train is constructed (i.e. when effects are initialized).

[17]:

cmd

[17]:
CurrSys
❗OBS
  • instrument: ZShooter_v2
  • modes: ['SPEC']
  • pupil_angle: 0
  • object: Test
  • az: 0.0
  • airmass: 1.0
  • seeing: 0.7
  • brightness: dark
  • dit_blue: 300.0
  • ndit_blue: 1
  • dit_green: 300.0
  • ndit_green: 1
  • dit_red: 300.0
  • ndit_red: 1
  • dit_yj: 300.0
  • ndit_yj: 1
  • dit_h: 300.0
  • ndit_h: 1
  • dit_k: 300.0
  • ndit_k: 1
❗ATMO
  • location: MaunaKea
  • altitude: 4123
  • longitude: -155.4744
  • latitude: 19.8263
  • temperature: 2.5
  • humidity: 0.1
  • pressure: 0.62
  • pwv: 2.5
  • x_co2: 450
  • airmass: !OBS.airmass
  • pupil_angle: !OBS.pupil_angle
  • pixel_scale: !INST.pixel_scale
  • background:
    • filter_name: R
    • value: 22.0
    • unit: mag
  • seeing: !OBS.seeing
  • skycalc_timeout: 2.0
❗TEL
  • telescope: keck
  • temperature: !ATMO.temperature
❗INST
  • pixel_scale: 0.1570545
  • plate_scale: 10.4703
  • decouple_detector_from_sky_headers: True
  • include_diffuse_emmisivity: True
  • vis_curr_slit: 0.7
  • nir_curr_slit: 0.7
  • tapered_qe_peak: 0.95
  • tapered_qe_floor: 0.0
  • tapered_qe_diffuse_position_samples: 20
  • tapered_qe_b_center_wave_min: 308
  • tapered_qe_b_center_wave_max: 420
  • tapered_qe_b_flat_width: 100
  • tapered_qe_b_transition_width: 300
  • tapered_qe_g_center_wave_min: 400
  • tapered_qe_g_center_wave_max: 600
  • tapered_qe_g_flat_width: 100
  • tapered_qe_g_transition_width: 300
  • tapered_qe_r_center_wave_min: 580
  • tapered_qe_r_center_wave_max: 980
  • tapered_qe_r_flat_width: 240
  • tapered_qe_r_transition_width: 500
❗DET
  • temperature: -120
  • binx: 1
  • biny: 1
  • full_well: 64000
  • pixel_scale_b: 0.1570545
  • pixel_scale_g: 0.1570545
  • pixel_scale_r: 0.1570545
  • pixel_scale_yj: 0.1570545
  • pixel_scale_h: 0.1570545
  • pixel_scale_k: 0.1570545
  • plate_scale_b: 10.4703
  • plate_scale_g: 10.4703
  • plate_scale_r: 10.4703
  • plate_scale_yj: 10.4703
  • plate_scale_h: 10.4703
  • plate_scale_k: 10.4703
  • tapered_qe_example:
    • enabled: False
    • description: Detector-axis tapered QE design metadata. This is documentation for the disabled TaperedQuantumEfficiency selector in ZShooter_SPEC.yaml, not an active detector effect.
    • axis: y
    • position_unit: pix
    • position_min: 0
    • position_max: 2048
    • wave_unit: nm
    • peak: 0.95
    • description_note: This is a flattop/wide-rolloff coating model, not a Gaussian bandpass. Use flat_width_nm for the plateau width and transition_width_nm for each cosine-edged shoulder.
    • channels: [{'name': 'b', 'detector_id': 0, 'image_plane_id': 0, 'blue_nm': 310, 'red_nm': 420, 'flat_width_nm': 100, 'transition_width_nm': 300}, {'name': 'g', 'detector_id': 1, 'image_plane_id': 1, 'blue_nm': 400, 'red_nm': 600, 'flat_width_nm': 100, 'transition_width_nm': 300}, {'name': 'r', 'detector_id': 2, 'image_plane_id': 2, 'blue_nm': 580, 'red_nm': 980, 'flat_width_nm': 240, 'transition_width_nm': 500}]
❗SIM
  • random:
    • seed: 9001
  • spectral:
    • wave_unit: um
    • wave_min: 0.3
    • wave_mid: 1.0
    • wave_max: 2.5
    • spectral_bin_width: 1e-05
    • spectral_resolution: 40000
  • computing:
    • preload_field_of_views: True
SystemDict
❗SIM
  • spectral:
    • wave_min: 0.3
    • wave_mid: 2.2
    • wave_max: 20
    • wave_unit: um
    • spectral_bin_width: 0.0001
    • spectral_resolution: 5000
    • trace_flux_jacobian: False
    • minimum_throughput: 1e-06
    • minimum_pixel_flux: 1
  • sub_pixel:
    • flag: False
    • fraction: 1
  • random:
    • seed: None
  • computing:
    • chunk_size: 2048
    • max_segment_size: 16777217
    • oversampling: 1
    • spline_order: 1
    • flux_accuracy: 0.001
    • preload_field_of_views: False
    • nan_fill_value: 0.0
  • file:
    • local_packages_path: /Users/yashvi/Desktop/ZShooter/irdb
    • server_base_url: https://scopesim.univie.ac.at/InstPkgSvr/
    • retries: 3
    • example_data:
      • suburl: example_data
      • hash_file: example_data_registry.txt
    • psfs:
      • suburl: psfs
      • hash_file: psfs_registry.txt
    • atmo:
      • suburl: atmo
      • hash_file: atmo_registry.txt
    • use_cached_downloads: False
    • search_path: ['./inst_pkgs/', './', '/Users/yashvi/Desktop/ZShooter/irdb']
    • error_on_missing_file: False
  • reports:
    • ip_tracking: False
    • verbose: False
    • rst_path: ./reports/rst/
    • latex_path: ./reports/latex/
    • image_path: ./reports/images/
    • image_format: png
    • preamble_file: None
  • tests:
    • run_integration_tests: True
    • run_skycalc_ter_tests: True
❗OBS
❗TEL
  • etendue: 0
  • area: 0
❗INST
  • pixel_scale: 0
  • plate_scale: 0
  • decouple_detector_from_sky_headers: False

Create ZShooter’s OpticalTrain#

2. OpticalTrain(cmd)
        ├─ OpticsManager loads all yaml effect descriptions into optical elements (Effect subclasses)
        ├─ FOVManager runs z_order 200–299 effects that create spatio-spectral field of views from source foorprint
        ├─ ImagePlane objects are initialised from z_order 100–199 / 400–499 effects
        └─ DetectorManager creates Detector objects from z_order 400–499 effects

[3]:

zs = sim.OpticalTrain(cmd)

astar.scopesim.effects.sky_ter_curves - WARNING: wmin 299.99999999999994 is below the minimum wavelength covered by SkyCalc. Setting to 300 nm.
py.warnings - WARNING: /Users/yashvi/Desktop/ZShooter/ScopeSim/scopesim/effects/spectral_trace_list.py:170: DeprecationWarning: The fov_grid method is deprecated and will be removed in a future release.
  fov = thetrace.fov_grid()

py.warnings - WARNING: /Users/yashvi/Desktop/ZShooter/ScopeSim/scopesim/effects/spectral_trace_list.py:212: DeprecationWarning: The fov_grid method is deprecated and will be removed in a future release.
  vol = spt.fov_grid()

Some basic info about the loaded effects can be accessed as follows:

[4]:

zs.effects

[4]:
Table length=28
elementnameclassincluded
str15str40str25bool
MaunaKeaatmo_transmissionTERCurveTrue
MaunaKeacontinuum_emissionSkyBackgroundTERCurveTrue
MaunaKeaairglow_and_interline_continuumPalaceAirglowEmissionTrue
MaunaKeaseeing_psfAOEnhanceablePSFTrue
MaunaKeaadc_residualsADCShiftTrue
kecktelescope_reflectionSurfaceListTrue
ZShooterdichroic_treeDichroicTreeTrue
ZShooterslitwheel_selectorSelectorWheelTrue
ZShooterchannel_optics_selectorSelectorWheelTrue
............
zspec_detectorsdetector_yjDetectorListTrue
zspec_detectorsdetector_hDetectorListTrue
zspec_detectorsdetector_kDetectorListTrue
zspec_detectorsexposure_integration_selectorSelectorWheelTrue
zspec_detectorsshot_noiseShotNoiseTrue
zspec_detectorsdark_current_selectorSelectorWheelTrue
zspec_detectorsdetector_linearity_selectorSelectorWheelFalse
zspec_detectorsreadout_noise_selectorSelectorWheelTrue
zspec_detectorsvisible_binning_selectorSelectorWheelTrue
zspec_detectorsbias_selectorSelectorWheelTrue

Entire effect can be toggled on/off via include attribute, e.g.:

zs['seeing_psf'].include = False

Individual instantiated effects can be accessed via zs[effect_name], e.g.:

[5]:

zs['seeing_psf']

[5]:

AOEnhanceablePSF: "seeing_psf"

[6]:

zs['seeing_psf'].__dict__

[6]:

{'kernel': None,
 'valid_waverange': None,
 '_waveset': [],
 'data_container': <scopesim.effects.data_container.DataContainer at 0x11869d0a0>,
 'meta': {'filename': None,
  'description': 'Seeing limited but AO enhanceable Moffat PSF (wavelength dependent)',
  'history': [],
  'name': 'seeing_psf',
  'include': True,
  'location': 'MaunaKea',
  'altitude': 4123,
  'longitude': -155.4744,
  'latitude': 19.8263,
  'temperature': 2.5,
  'humidity': 0.1,
  'pressure': 0.62,
  'pwv': 2.5,
  'x_co2': 450,
  'airmass': 1.0,
  'pupil_angle': 0,
  'pixel_scale': 0.1570545,
  'background': {'filter_name': 'R', 'value': 22.0, 'unit': 'mag'},
  'seeing': 0.7,
  'skycalc_timeout': 2.0,
  'element_name': 'MaunaKea',
  'enable_ao': False,
  'ao_table': 'ao_table.dat',
  'is_absolute': True,
  'fwhm': {'seeing': 0.7,
   'seeing_unit': 'arcsec',
   'pivot_wave': 500,
   'pivot_wave_unit': 'nm'},
  'alpha': 4.765,
  'cmds': CurrObs contents:

CurrSys contents:
├─OBS:
│ ├─instrument: ZShooter_v2
│ ├─modes: ['SPEC']
│ ├─pupil_angle: 0
│ ├─object: Test
│ ├─az: 0.0
│ ├─airmass: 1.0
│ ├─seeing: 0.7
│ ├─brightness: dark
│ ├─dit_blue: 300.0
│ ├─ndit_blue: 1
│ ├─dit_green: 300.0
│ ├─ndit_green: 1
│ ├─dit_red: 300.0
│ ├─ndit_red: 1
│ ├─dit_yj: 300.0
│ ├─ndit_yj: 1
│ ├─dit_h: 300.0
│ ├─ndit_h: 1
│ ├─dit_k: 300.0
│ └─ndit_k: 1
├─ATMO:
│ ├─background:
│ │ ├─filter_name: R
│ │ ├─value: 22.0
│ │ └─unit: mag
│ ├─location: MaunaKea
│ ├─altitude: 4123
│ ├─longitude: -155.4744
│ ├─latitude: 19.8263
│ ├─temperature: 2.5
│ ├─humidity: 0.1
│ ├─pressure: 0.62
│ ├─pwv: 2.5
│ ├─x_co2: 450
│ ├─airmass: !OBS.airmass
│ ├─pupil_angle: !OBS.pupil_angle
│ ├─pixel_scale: !INST.pixel_scale
│ ├─seeing: !OBS.seeing
│ └─skycalc_timeout: 2.0
├─TEL:
│ ├─telescope: keck
│ ├─temperature: !ATMO.temperature
│ ├─area: 76.52965998654079 m2
│ └─etendue: 1.8876894683918166 arcsec2 m2
├─INST:
│ ├─pixel_scale: 0.1570545
│ ├─plate_scale: 10.4703
│ ├─decouple_detector_from_sky_headers: True
│ ├─include_diffuse_emmisivity: True
│ ├─vis_curr_slit: 0.7
│ ├─nir_curr_slit: 0.7
│ ├─tapered_qe_peak: 0.95
│ ├─tapered_qe_floor: 0.0
│ ├─tapered_qe_diffuse_position_samples: 20
│ ├─tapered_qe_b_center_wave_min: 308
│ ├─tapered_qe_b_center_wave_max: 420
│ ├─tapered_qe_b_flat_width: 100
│ ├─tapered_qe_b_transition_width: 300
│ ├─tapered_qe_g_center_wave_min: 400
│ ├─tapered_qe_g_center_wave_max: 600
│ ├─tapered_qe_g_flat_width: 100
│ ├─tapered_qe_g_transition_width: 300
│ ├─tapered_qe_r_center_wave_min: 580
│ ├─tapered_qe_r_center_wave_max: 980
│ ├─tapered_qe_r_flat_width: 240
│ └─tapered_qe_r_transition_width: 500
├─DET:
│ ├─tapered_qe_example:
│ │ ├─enabled: False
│ │ ├─description: Detector-axis tapered QE design metadata. This is documentation for the disabled TaperedQuantumEfficiency selector in ZShooter_SPEC.yaml, not an active detector effect.

│ │ ├─axis: y
│ │ ├─position_unit: pix
│ │ ├─position_min: 0
│ │ ├─position_max: 2048
│ │ ├─wave_unit: nm
│ │ ├─peak: 0.95
│ │ ├─description_note: This is a flattop/wide-rolloff coating model, not a Gaussian bandpass. Use flat_width_nm for the plateau width and transition_width_nm for each cosine-edged shoulder.

│ │ └─channels: [{'name': 'b', 'detector_id': 0, 'image_plane_id': 0, 'blue_nm': 310, 'red_nm': 420, 'flat_width_nm': 100, 'transition_width_nm': 300}, {'name': 'g', 'detector_id': 1, 'image_plane_id': 1, 'blue_nm': 400, 'red_nm': 600, 'flat_width_nm': 100, 'transition_width_nm': 300}, {'name': 'r', 'detector_id': 2, 'image_plane_id': 2, 'blue_nm': 580, 'red_nm': 980, 'flat_width_nm': 240, 'transition_width_nm': 500}]
│ ├─temperature: -120
│ ├─binx: 1
│ ├─biny: 1
│ ├─full_well: 64000
│ ├─pixel_scale_b: 0.1570545
│ ├─pixel_scale_g: 0.1570545
│ ├─pixel_scale_r: 0.1570545
│ ├─pixel_scale_yj: 0.1570545
│ ├─pixel_scale_h: 0.1570545
│ ├─pixel_scale_k: 0.1570545
│ ├─plate_scale_b: 10.4703
│ ├─plate_scale_g: 10.4703
│ ├─plate_scale_r: 10.4703
│ ├─plate_scale_yj: 10.4703
│ ├─plate_scale_h: 10.4703
│ └─plate_scale_k: 10.4703
└─SIM:
  ├─random:
  │ └─seed: 9001
  ├─spectral:
  │ ├─wave_unit: um
  │ ├─wave_min: 0.3
  │ ├─wave_mid: 1.0
  │ ├─wave_max: 2.5
  │ ├─spectral_bin_width: 1e-05
  │ └─spectral_resolution: 40000
  └─computing:
    └─preload_field_of_views: True

SystemDict contents:
├─SIM:
│ ├─spectral:
│ │ ├─wave_min: 0.3
│ │ ├─wave_mid: 2.2
│ │ ├─wave_max: 20
│ │ ├─wave_unit: um
│ │ ├─spectral_bin_width: 0.0001
│ │ ├─spectral_resolution: 5000
│ │ ├─trace_flux_jacobian: False
│ │ ├─minimum_throughput: 1e-06
│ │ └─minimum_pixel_flux: 1
│ ├─sub_pixel:
│ │ ├─flag: False
│ │ └─fraction: 1
│ ├─random:
│ │ └─seed: None
│ ├─computing:
│ │ ├─chunk_size: 2048
│ │ ├─max_segment_size: 16777217
│ │ ├─oversampling: 1
│ │ ├─spline_order: 1
│ │ ├─flux_accuracy: 0.001
│ │ ├─preload_field_of_views: False
│ │ └─nan_fill_value: 0.0
│ ├─file:
│ │ ├─example_data:
│ │ │ ├─suburl: example_data
│ │ │ └─hash_file: example_data_registry.txt
│ │ ├─psfs:
│ │ │ ├─suburl: psfs
│ │ │ └─hash_file: psfs_registry.txt
│ │ ├─atmo:
│ │ │ ├─suburl: atmo
│ │ │ └─hash_file: atmo_registry.txt
│ │ ├─local_packages_path: /Users/yashvi/Desktop/ZShooter/irdb
│ │ ├─server_base_url: https://scopesim.univie.ac.at/InstPkgSvr/
│ │ ├─retries: 3
│ │ ├─use_cached_downloads: False
│ │ ├─search_path: ['./inst_pkgs/', './', '/Users/yashvi/Desktop/ZShooter/irdb']
│ │ └─error_on_missing_file: False
│ ├─reports:
│ │ ├─ip_tracking: False
│ │ ├─verbose: False
│ │ ├─rst_path: ./reports/rst/
│ │ ├─latex_path: ./reports/latex/
│ │ ├─image_path: ./reports/images/
│ │ ├─image_format: png
│ │ └─preamble_file: None
│ └─tests:
│   ├─run_integration_tests: True
│   └─run_skycalc_ter_tests: True
├─OBS:
├─TEL:
│ ├─etendue: 0
│ └─area: 0
└─INST:
  ├─pixel_scale: 0
  ├─plate_scale: 0
  └─decouple_detector_from_sky_headers: False,
  'flux_accuracy': 0.001,
  'sub_pixel_flag': False,
  'convolve_mode': 'same',
  'bkg_width': -1,
  'wave_key': 'WAVE0',
  'normalise_kernel': True,
  'rounded_edges': True,
  'rotational_blur_angle': <Quantity 0. deg>},
 'cmds': CurrObs contents:

CurrSys contents:
├─OBS:
│ ├─instrument: ZShooter_v2
│ ├─modes: ['SPEC']
│ ├─pupil_angle: 0
│ ├─object: Test
│ ├─az: 0.0
│ ├─airmass: 1.0
│ ├─seeing: 0.7
│ ├─brightness: dark
│ ├─dit_blue: 300.0
│ ├─ndit_blue: 1
│ ├─dit_green: 300.0
│ ├─ndit_green: 1
│ ├─dit_red: 300.0
│ ├─ndit_red: 1
│ ├─dit_yj: 300.0
│ ├─ndit_yj: 1
│ ├─dit_h: 300.0
│ ├─ndit_h: 1
│ ├─dit_k: 300.0
│ └─ndit_k: 1
├─ATMO:
│ ├─background:
│ │ ├─filter_name: R
│ │ ├─value: 22.0
│ │ └─unit: mag
│ ├─location: MaunaKea
│ ├─altitude: 4123
│ ├─longitude: -155.4744
│ ├─latitude: 19.8263
│ ├─temperature: 2.5
│ ├─humidity: 0.1
│ ├─pressure: 0.62
│ ├─pwv: 2.5
│ ├─x_co2: 450
│ ├─airmass: !OBS.airmass
│ ├─pupil_angle: !OBS.pupil_angle
│ ├─pixel_scale: !INST.pixel_scale
│ ├─seeing: !OBS.seeing
│ └─skycalc_timeout: 2.0
├─TEL:
│ ├─telescope: keck
│ ├─temperature: !ATMO.temperature
│ ├─area: 76.52965998654079 m2
│ └─etendue: 1.8876894683918166 arcsec2 m2
├─INST:
│ ├─pixel_scale: 0.1570545
│ ├─plate_scale: 10.4703
│ ├─decouple_detector_from_sky_headers: True
│ ├─include_diffuse_emmisivity: True
│ ├─vis_curr_slit: 0.7
│ ├─nir_curr_slit: 0.7
│ ├─tapered_qe_peak: 0.95
│ ├─tapered_qe_floor: 0.0
│ ├─tapered_qe_diffuse_position_samples: 20
│ ├─tapered_qe_b_center_wave_min: 308
│ ├─tapered_qe_b_center_wave_max: 420
│ ├─tapered_qe_b_flat_width: 100
│ ├─tapered_qe_b_transition_width: 300
│ ├─tapered_qe_g_center_wave_min: 400
│ ├─tapered_qe_g_center_wave_max: 600
│ ├─tapered_qe_g_flat_width: 100
│ ├─tapered_qe_g_transition_width: 300
│ ├─tapered_qe_r_center_wave_min: 580
│ ├─tapered_qe_r_center_wave_max: 980
│ ├─tapered_qe_r_flat_width: 240
│ └─tapered_qe_r_transition_width: 500
├─DET:
│ ├─tapered_qe_example:
│ │ ├─enabled: False
│ │ ├─description: Detector-axis tapered QE design metadata. This is documentation for the disabled TaperedQuantumEfficiency selector in ZShooter_SPEC.yaml, not an active detector effect.

│ │ ├─axis: y
│ │ ├─position_unit: pix
│ │ ├─position_min: 0
│ │ ├─position_max: 2048
│ │ ├─wave_unit: nm
│ │ ├─peak: 0.95
│ │ ├─description_note: This is a flattop/wide-rolloff coating model, not a Gaussian bandpass. Use flat_width_nm for the plateau width and transition_width_nm for each cosine-edged shoulder.

│ │ └─channels: [{'name': 'b', 'detector_id': 0, 'image_plane_id': 0, 'blue_nm': 310, 'red_nm': 420, 'flat_width_nm': 100, 'transition_width_nm': 300}, {'name': 'g', 'detector_id': 1, 'image_plane_id': 1, 'blue_nm': 400, 'red_nm': 600, 'flat_width_nm': 100, 'transition_width_nm': 300}, {'name': 'r', 'detector_id': 2, 'image_plane_id': 2, 'blue_nm': 580, 'red_nm': 980, 'flat_width_nm': 240, 'transition_width_nm': 500}]
│ ├─temperature: -120
│ ├─binx: 1
│ ├─biny: 1
│ ├─full_well: 64000
│ ├─pixel_scale_b: 0.1570545
│ ├─pixel_scale_g: 0.1570545
│ ├─pixel_scale_r: 0.1570545
│ ├─pixel_scale_yj: 0.1570545
│ ├─pixel_scale_h: 0.1570545
│ ├─pixel_scale_k: 0.1570545
│ ├─plate_scale_b: 10.4703
│ ├─plate_scale_g: 10.4703
│ ├─plate_scale_r: 10.4703
│ ├─plate_scale_yj: 10.4703
│ ├─plate_scale_h: 10.4703
│ └─plate_scale_k: 10.4703
└─SIM:
  ├─random:
  │ └─seed: 9001
  ├─spectral:
  │ ├─wave_unit: um
  │ ├─wave_min: 0.3
  │ ├─wave_mid: 1.0
  │ ├─wave_max: 2.5
  │ ├─spectral_bin_width: 1e-05
  │ └─spectral_resolution: 40000
  └─computing:
    └─preload_field_of_views: True

SystemDict contents:
├─SIM:
│ ├─spectral:
│ │ ├─wave_min: 0.3
│ │ ├─wave_mid: 2.2
│ │ ├─wave_max: 20
│ │ ├─wave_unit: um
│ │ ├─spectral_bin_width: 0.0001
│ │ ├─spectral_resolution: 5000
│ │ ├─trace_flux_jacobian: False
│ │ ├─minimum_throughput: 1e-06
│ │ └─minimum_pixel_flux: 1
│ ├─sub_pixel:
│ │ ├─flag: False
│ │ └─fraction: 1
│ ├─random:
│ │ └─seed: None
│ ├─computing:
│ │ ├─chunk_size: 2048
│ │ ├─max_segment_size: 16777217
│ │ ├─oversampling: 1
│ │ ├─spline_order: 1
│ │ ├─flux_accuracy: 0.001
│ │ ├─preload_field_of_views: False
│ │ └─nan_fill_value: 0.0
│ ├─file:
│ │ ├─example_data:
│ │ │ ├─suburl: example_data
│ │ │ └─hash_file: example_data_registry.txt
│ │ ├─psfs:
│ │ │ ├─suburl: psfs
│ │ │ └─hash_file: psfs_registry.txt
│ │ ├─atmo:
│ │ │ ├─suburl: atmo
│ │ │ └─hash_file: atmo_registry.txt
│ │ ├─local_packages_path: /Users/yashvi/Desktop/ZShooter/irdb
│ │ ├─server_base_url: https://scopesim.univie.ac.at/InstPkgSvr/
│ │ ├─retries: 3
│ │ ├─use_cached_downloads: False
│ │ ├─search_path: ['./inst_pkgs/', './', '/Users/yashvi/Desktop/ZShooter/irdb']
│ │ └─error_on_missing_file: False
│ ├─reports:
│ │ ├─ip_tracking: False
│ │ ├─verbose: False
│ │ ├─rst_path: ./reports/rst/
│ │ ├─latex_path: ./reports/latex/
│ │ ├─image_path: ./reports/images/
│ │ ├─image_format: png
│ │ └─preamble_file: None
│ └─tests:
│   ├─run_integration_tests: True
│   └─run_skycalc_ter_tests: True
├─OBS:
├─TEL:
│ ├─etendue: 0
│ └─area: 0
└─INST:
  ├─pixel_scale: 0
  ├─plate_scale: 0
  └─decouple_detector_from_sky_headers: False,
 'convolution_classes': scopesim.optics.fov.FieldOfView,
 'alpha': 3.25,
 'fwhm': functools.partial(<function MoffatPSF.natural_scale at 0x113cadf80>, seeing=<Quantity 0.7 arcsec>, pivot=<Quantity 500. nm>, zenith_angle=<Quantity 0. deg>),
 'ao_scale': <scipy.interpolate._bsplines.BSpline at 0x118724a70>}

The kwargs that the effect was initialized with are store in meta attribute

Updating properties and effects#

Method 1: Editing the irdb yaml files directly and re-running ``sim.UserCommands(…)`` + ``OpticalTrain(…)``

Self-explanatory

Method 2: Update the ``cmd`` object and then re-run ``OpticalTrain(…)`` to re-initialize the optics with the updated values.

Updating a live reference property value:

cmd['!OBS.airmass'] = 2.0            # Target coordinate information (other similar properties include: alt, az, ra, dec)
cmd['!ATMO.seeing'] = 0.7            # Atmospheric seeing in arcsec (other similar properties include: pwv, humidity, temperature, pressure etc.)
cmd['!OBS.brightness'] = 'bright'    # Sky brightness value that decides the date/time of observation based on moon phase (used if !OBS.mjdobs is not set)
cmd['!OBS.dit'] = 60                 # Detector integration time (currently same for all detectors)
cmd['!OBS.ndit'] = 2                 # Number of exposures
cmd['!INST.vis_curr_slit'] = 0.7  # Slit width

Updating an effect’s kwargs:

Update directly in the yaml file and re-init optical train. If there is a particular kwarg being toggled on/off frequently, it is recommended to make it a live reference in the yaml (i.e. add a key under properties in the yaml and reference it via !ALIAS.property in the effect kwargs input), so that it can be updated via setting the value in cmd.

Now, after updating cmd values, optical train HAS to be re-initialized, otherwise the updated property might not be reflected correctly.

zs = sim.OpticalTrain(cmd)

NOTE: Any effect kwarg that you expect to change/update frequently should be converted to a live reference (i.e. add it under ``properties`` in the yaml and reference it via ``!ALIAS.property`` in the effect kwargs)

Create a scene#

[18]:

# star
import scopesim_templates as sim_tp
star = sim_tp.star(filter_name='V', amplitude=10*u.ABmag)

Observe It#

3. observe(source, update=True)
        ├─ If update=True, re-create FOVManager, ImagePlane objects and DetectorManager
        ├─ z_order 500–599: Apply spectral transmissions (any 1D factors that multiply to the source spectrum)
        ├─ For each FoV:
        │     ├─ Extract overlapping source data → attach to FoV
        │     └─ z_order 600–699: 3D FOV effects (PSF, trace, ADC, shifts…)
        ├─ Project FoV HDU to the correct ImagePlane
        └─ z_order 700–799: Apply 2D image plane effects

[ ]:

zs.observe(star)

Read It Out#

4. readout()
        ├─ Map ImagePlane on to Detector(s)
        ├─ z_order 800–899: Apply detector effects (noise, dark, readout)
        ├─ z_order 900–999: Apply detector array effects
        └─ z_order 1000–1099: Apply FITS header effects → return list of HDUs

[14]:

hdus = zs.readout()

Visualize#

[15]:

from astropy.visualization import ZScaleInterval

# reduce space between subplots
fig, axes = plt.subplots(2,3, figsize=(12,8), gridspec_kw={'wspace':0.2}, tight_layout=True)
titles = ['B', 'G', 'R', 'YJ', 'H', 'K']
i = 0
for ax, imhdu in zip(axes.flat, hdus):
    interval = ZScaleInterval()
    vmin, vmax = interval.get_limits(imhdu[1].data)
    ax.axis("off")
    im = ax.imshow(imhdu[1].data, origin='lower', vmin=vmin, vmax=vmax, cmap='Grays_r')
    ax.set_title(titles[i])
    plt.colorbar(im, ax=ax, fraction=0.046, pad=0.04)
    i += 1

plt.subplots_adjust(wspace=0.0, hspace=0.0)

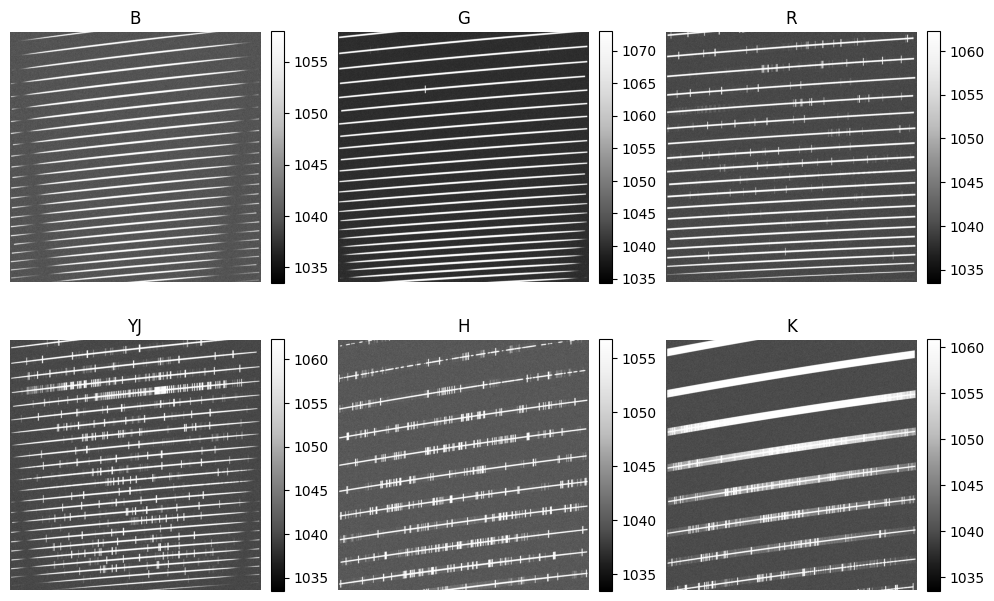

../../../_images/_staged_sim_notebooks_i_ScopeSim_Overview_25_0.png

Save#

[12]:

import datetime as datetime
from astropy.io import fits

instrument = cmd["!OBS.instrument"]
mode = "_".join(cmd["!OBS.modes"])
scene_name = cmd["!OBS.object"]
filenm_root = f"{instrument}_{mode}-{scene_name}_{datetime.datetime.now().strftime('%Y%m%d_%H%M%S')}"
file = f"{filenm_root}.fits"


combined_hdus = [fits.PrimaryHDU()]

# Setup addtional PrimaryHDU keys (can also be made into a custom effect of z_order 10xx for header populating)
extension_names = ["B", "G", "R", "YJ", "H", "K"]
for ext_name, channel_hdul in zip(extension_names, hdus):
    image_hdu = channel_hdul[1].copy()
    image_hdu.header["EXTNAME"] = ext_name
    combined_hdus.append(image_hdu)

fits.HDUList(combined_hdus).writeto(file, overwrite=True)

[12]:
